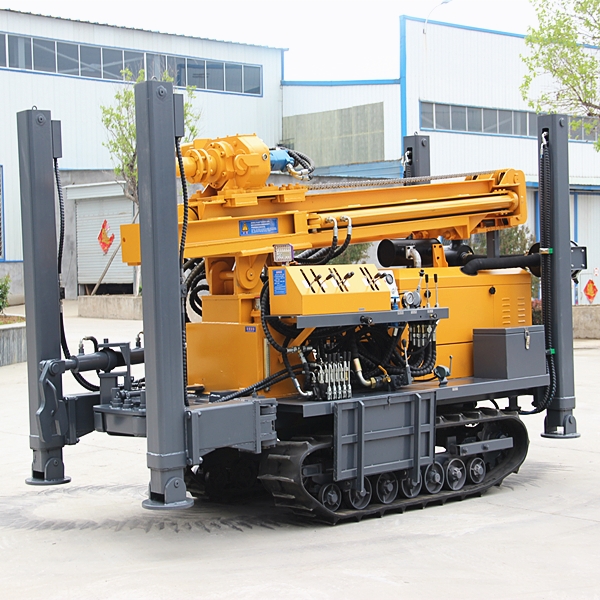

KW180R Water Well Drill Rig

  • Item No.:

  • Payment:

  • Product Origin:

  • Color:

  • Shipping Port:

  • Min Order:

  • Lead Time:

  • Description

KW180R water well drill rig the drilling diameter is 140-254mm and the drilling depth can reach to 180 meters, which can meet most of the farming or construction water well requirement, besides, the KW180R have features of small size, light weight, flexible movement, convenient transportation, etc.

More Features of KW180R Water well drill rig

1.Equipped with 55KW Yuchai brand turbocharged engine, strong power;

2. Patented design composite boom, double cylinder lift, long stroke, large tonnage

3. The main boom of each rig is equipped with a stopper to protect the cylinder;

4.Drilling machine chassis: professional excavator chassis ,durable,heavy bearing capacity,wide chain plate, less damage to hard road.

5.Parallel gearbox design, separate oil pump, sufficient power supply, reasonable distribution, unique design of hydraulic system, simple maintenance and low cost

6. The travel motor is equipped with reducer, durable and long service life;

7.Fast distribution valve: the speed of three gears up to 150-160 rpm, basically achieve the dual-use function of water and air

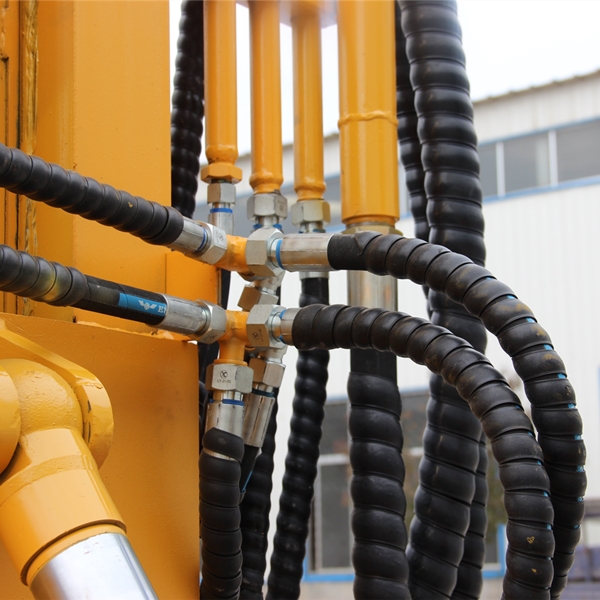

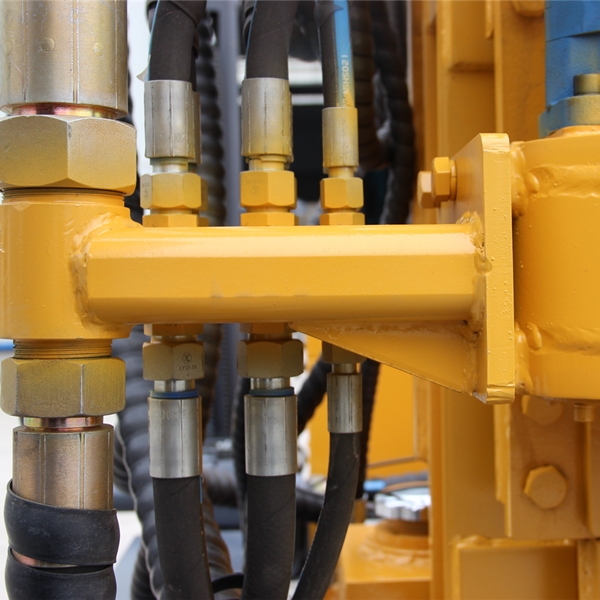

8. Each hydraulic hose is covered with soft management set to make the hose last longer.

9. The rig power is driven by the diesel engine, and the rig's walking, turning, propulsion, lifting, outriggers, and unloading rods are all controlled by hydraulic pressure.

10.The rig's walking is a crawler-type self-structure, which is easy to move. Its rubber crawler-type chassis makes it easy to walk in the city and the courtyard, and it is not easy to damage the ground.

11.High and Strong hydraulic legs allow quick and stable adjustment of the rig's body level for easy loading and unloading and shifting positions.

12.Dedicated wellhead setting provide a the certain center for drilling to ensure the vertical opening and positioning accuracy

13.Mechanical positioning of the carriage and frame improves the stability of the carriage

14.The pneumatic system has a custom oil injector that lubricates the impactor, effectively increasing the life of the impactor.

Zhengzhou Kaishan Mechanical&Electrical Equipment Co.,LTD.

Zhengzhou Kaishan Mechanical&Electrical Equipment Co.,LTD.

Zhengzhou Kaishan Mechanical&Electrical Equipment Co.,LTD.

Zhengzhou Kaishan Mechanical&Electrical Equipment Co.,LTD.

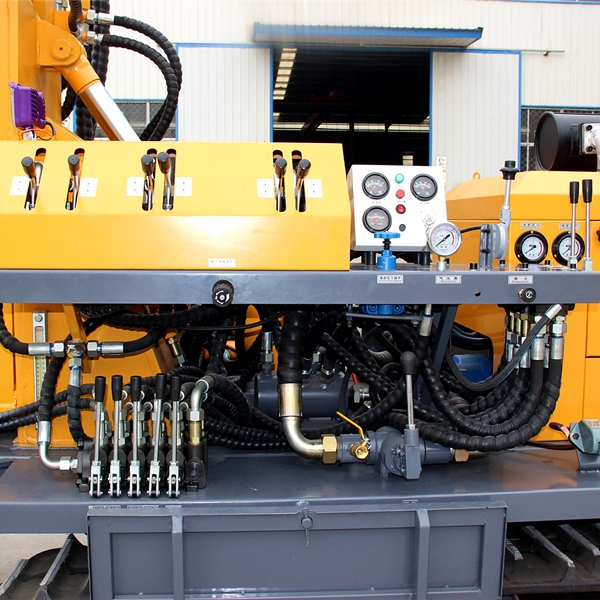

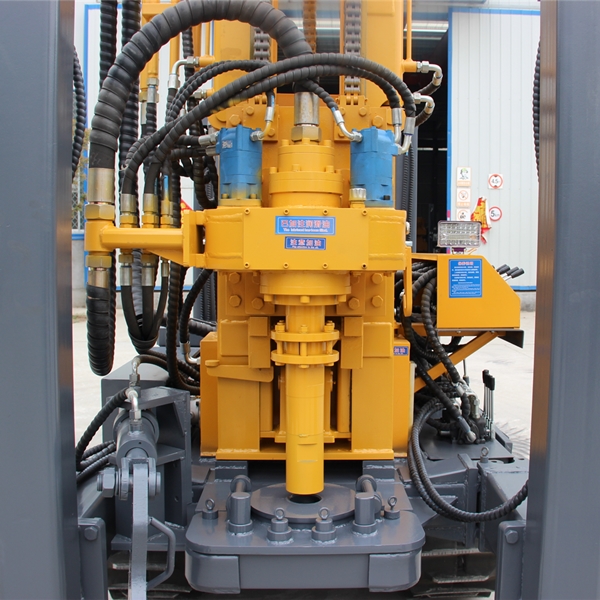

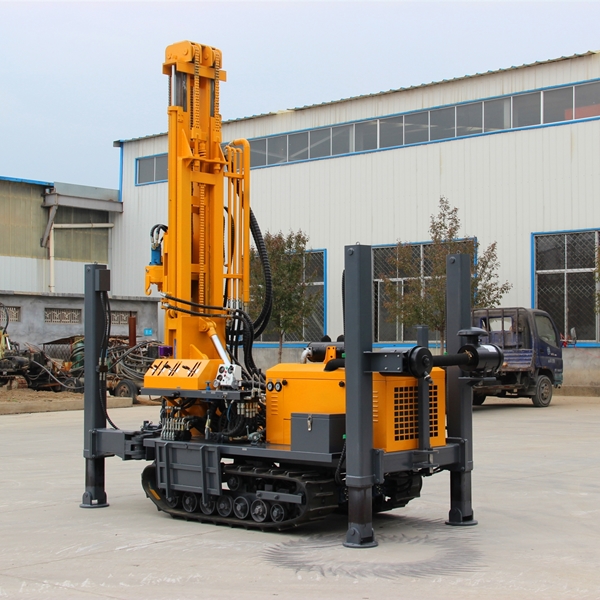

Please check the following pictures for more details about KW80R DTH Water well drilling rig

more details about water well drill machine


KW180R Water well drill rig Technical Parameters

Drilling depth180m
Advance Length one time3m
Working pressure1.7-2.5MPa
Air consumption15-27m3/min
Length of rod1.5m,2m,3m
Dia. Of rodφ76, φ89,φ102
Lifting power10T
Rotation torque4200-5600N.m
Rotation Speed40-70r/min
Diesel Engine Quanchai
Engine Power55Kw/2200rpm
Travelling speed0-2.5 Km/h
Climb capacity30°
ApplicationComplicated geological conditions:Rock,Mud,Sand etc.
Drilling WayTop drive hydraulic rotary and propulsion,Dth Drilling or Mud Pump Driling
Dth Hammer4",5",6",8" Drill hammer or CIR110, 130, 150,170


Zhengzhou Kaishan Mechanical&Electrical Equipment Co.,LTD.

Zhengzhou Kaishan Mechanical&Electrical Equipment Co.,LTD.

We can supply different power plan for different customers, usually the water well drill rig work with Screw Air Compressor, but some of customers need to work with mud pump for the different working condition, so we can change the power supply plan according to your requirements. When you ready to buy our water well drill rig, please tell us the details working conditions for the water well, or you can tell us you need the bore-well machine working with air compressor or mud pump, we will prepare all the thing for you.

If you need to buy the water well drill bits and the drill pipes, mud pump or air compressor, we also have those drill bit and drill pipes, mud pump and air compressor, you can buy all the things from us, we can supply you the one-stop service, it means, one click, for all the things you need.

Please consult our salesman for the mud pump, air compressor drill bit and more details.
