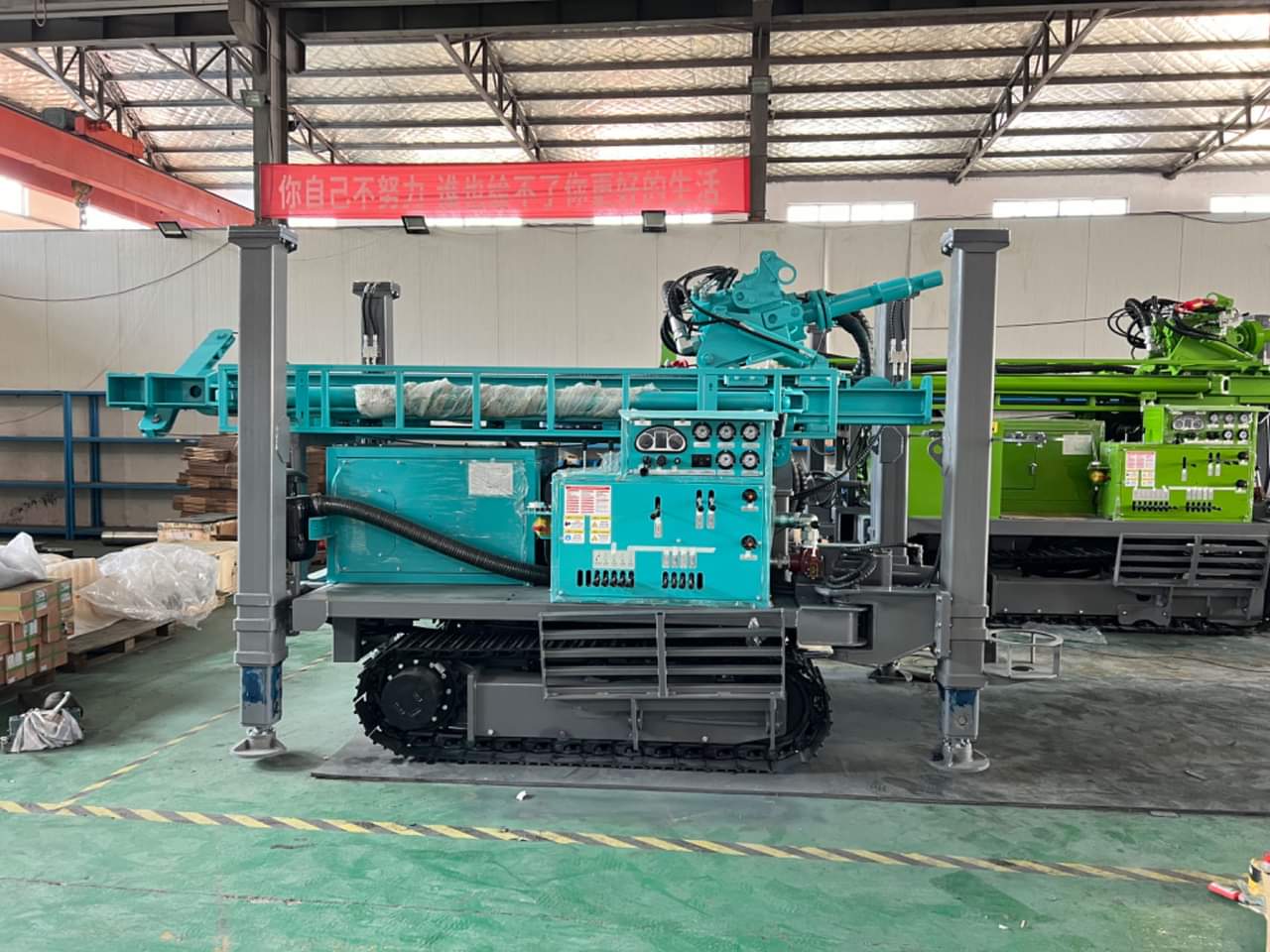

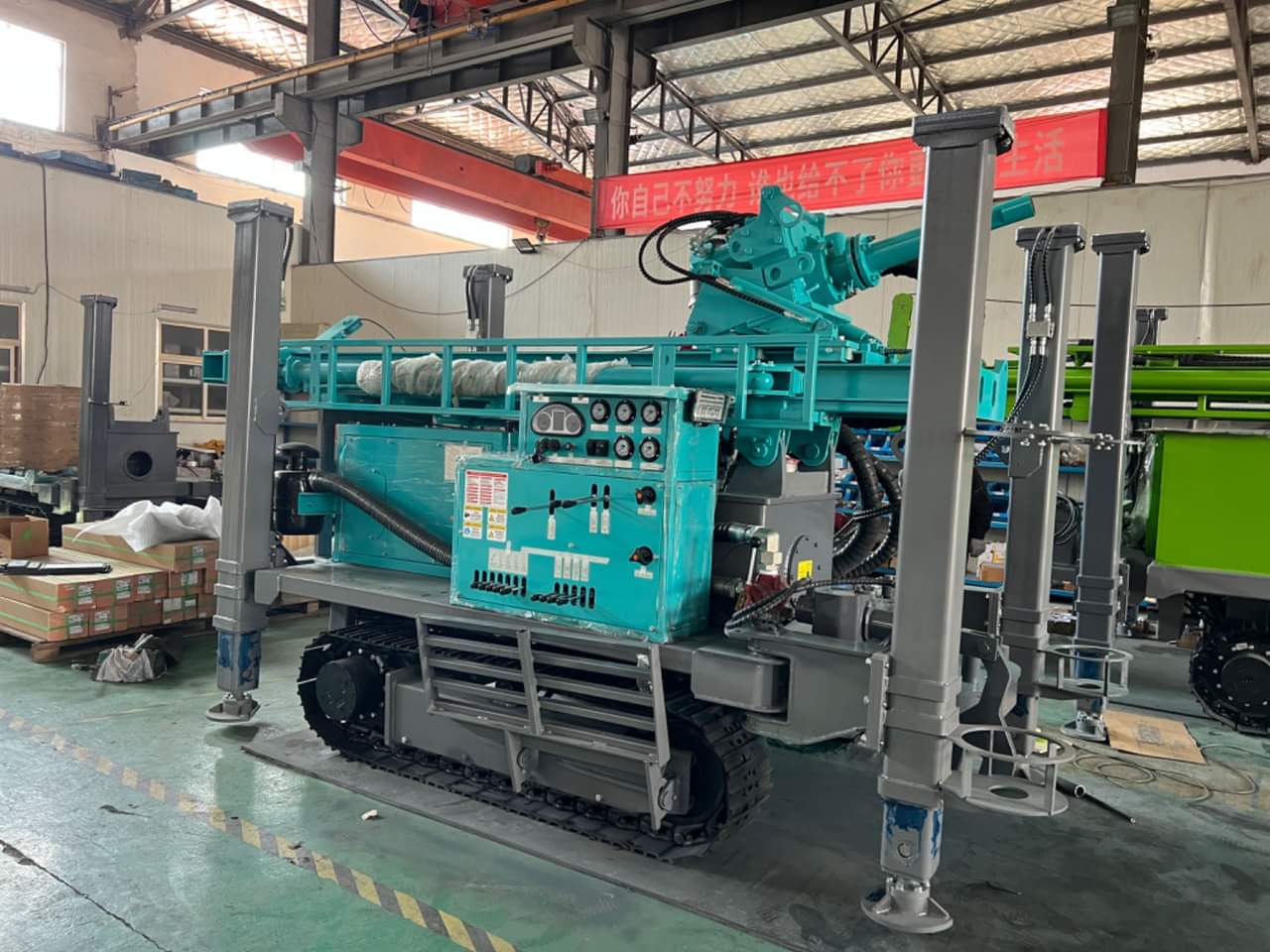

The water well drilling rig is composed of a diesel engine and a hydraulic oil pump, which provides power for the hydraulic motor of the drilling machine to travel, slewing, propulsion and lifting. Only the downhole impactor consumes compressed air during the operation of the drilling rig. The drilling rig is used for deepwater well engineering of various industrial and mining enterprises, domestic water wells, farmland irrigation and various types of ground temperature air conditioning and other well construction projects; the drilling rig can also use the casing to follow the wall forming process to drill water wells, which can adapt to various The geological layer is small in size, simple in operation, advanced in technology, convenient and flexible to use.
Advantages of this BSF200L Water Well Drill Rig
1. Excavator crawler chassis with strong off-road performance.
2.The independent module design allows the rig to be mounted on the truck for increased maneuverability.
3.Two-speed swing and propulsion speeds are available for different piercing needs in soil and rock formations.
4.The combined positioner can adjust and replace the positioning plate according to different types of drill pipe and impactor to ensure accurate and reliable positioning and centering.
5.The hoisting mechanism facilitates the lifting of the drill pipe and the impactor, reducing labor intensity
Parameter
Model（Crawler Type） | BSF150R （Rubber Chain） |
Weight（kg) | 4000 |
Dimenstion (mm) | 4000*1500*2150 |
Drilling Hole Diameter（mm） | 130-219 |
Drilling Depth（m） | 150 |
Feed Stroke（mm) | 3000 |
Travelling Speed(km/h) | 2 |
Climb Capacity (max) | 25° |
Ground Clearance (mm) | 250 |
Working Pressure(Mpa) | 1.45-2.5 |
Air Consumption（m3/min) | 15-27 |
Power（kw) | Yunnei 65KW or Yuchai 58KW |
Rotation Speed（rpm) | 38-55 |
Rotation Torque（Nm) | 4000-5000 |
TAG: Drill rig, Water well rig, BSF150R Water Well Drill RigApplications
The drilling rig is used for deepwater well engineering of various industrial and mining enterprises, domestic water wells, farmland irrigation and various types of ground temperature air conditioning and other well construction projects; the drilling rig can also use the casing to follow the wall forming process to drill water wells, which can adapt to various The geological layer is small in size, simple in operation, advanced in technology, convenient and flexible to use.
FAQ:
1.What can you buy from us? DTH drilling rig,core drilling rig,highway pile driver,solar pile driver ,anchor pile driver,rotary
drill rig ,Top Hammer drill rig，underground jumbo drill rig ,hydraulic scaling rig,DTH hammer,drill rod,screw air compressor,water well drilling rig,truck mounted water well drilling rig,reverse circulation drilling rig，environmental drilling rig，screw air compressor, piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.
2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc. 3. How is the shipment? How long dose it take? A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT.You can also appoint shipping method you like before we ship.
4.How is your quality control?
A: We have our own experienced QC.There will be strict inspection and testing for every order before shipping
out.
