The built-in turbine engine provides power for the drilling of the equipment, and the hydraulic system of the equipment is designed and developed independently. The transmission is separated from the oil pump, which provides more power for the water drilling rig.It also makes the allocation of built-in parts more reasonable and easy to maintain.The dual-powered motor also increases the torque and driving capacity of the equipment to some extent.

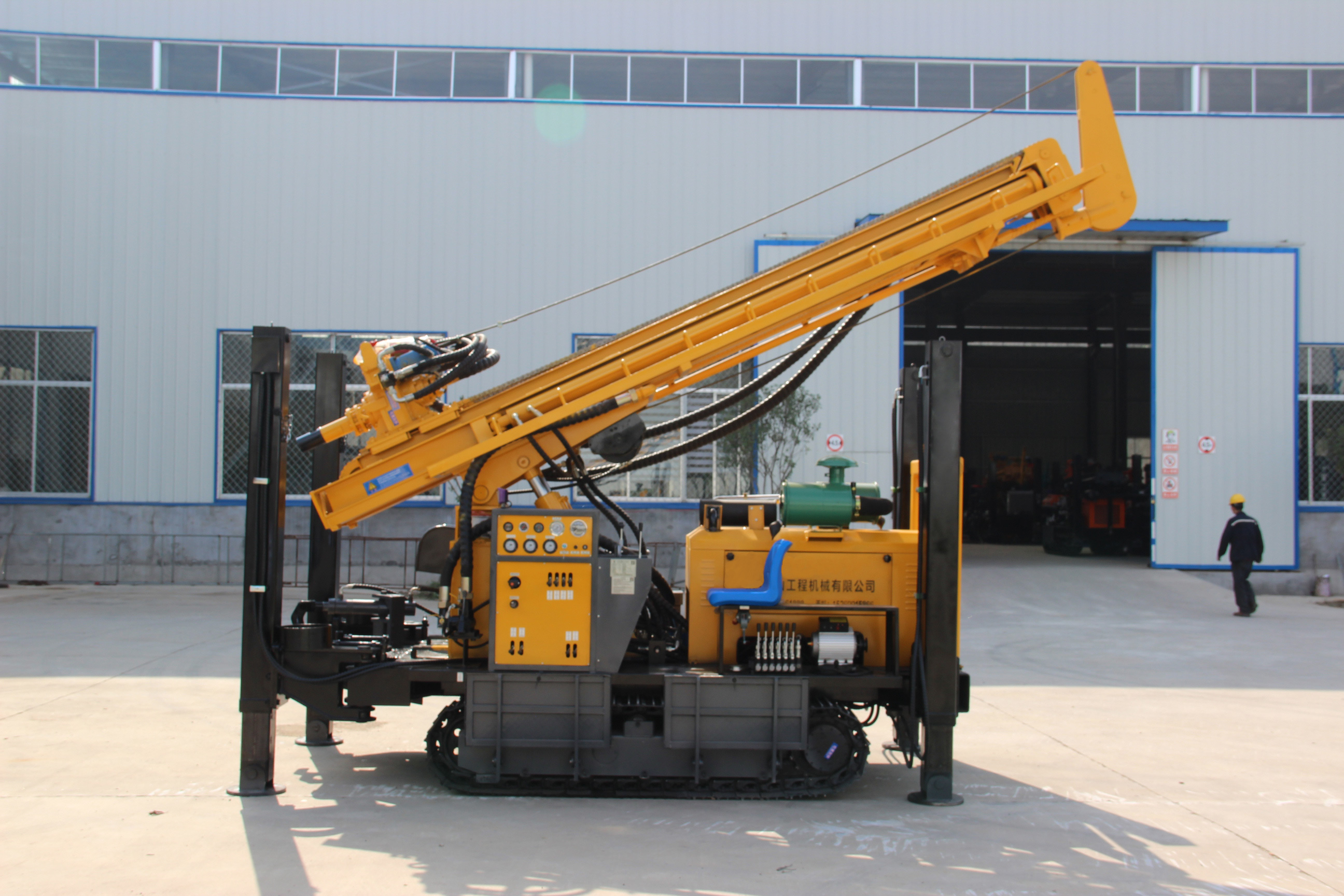

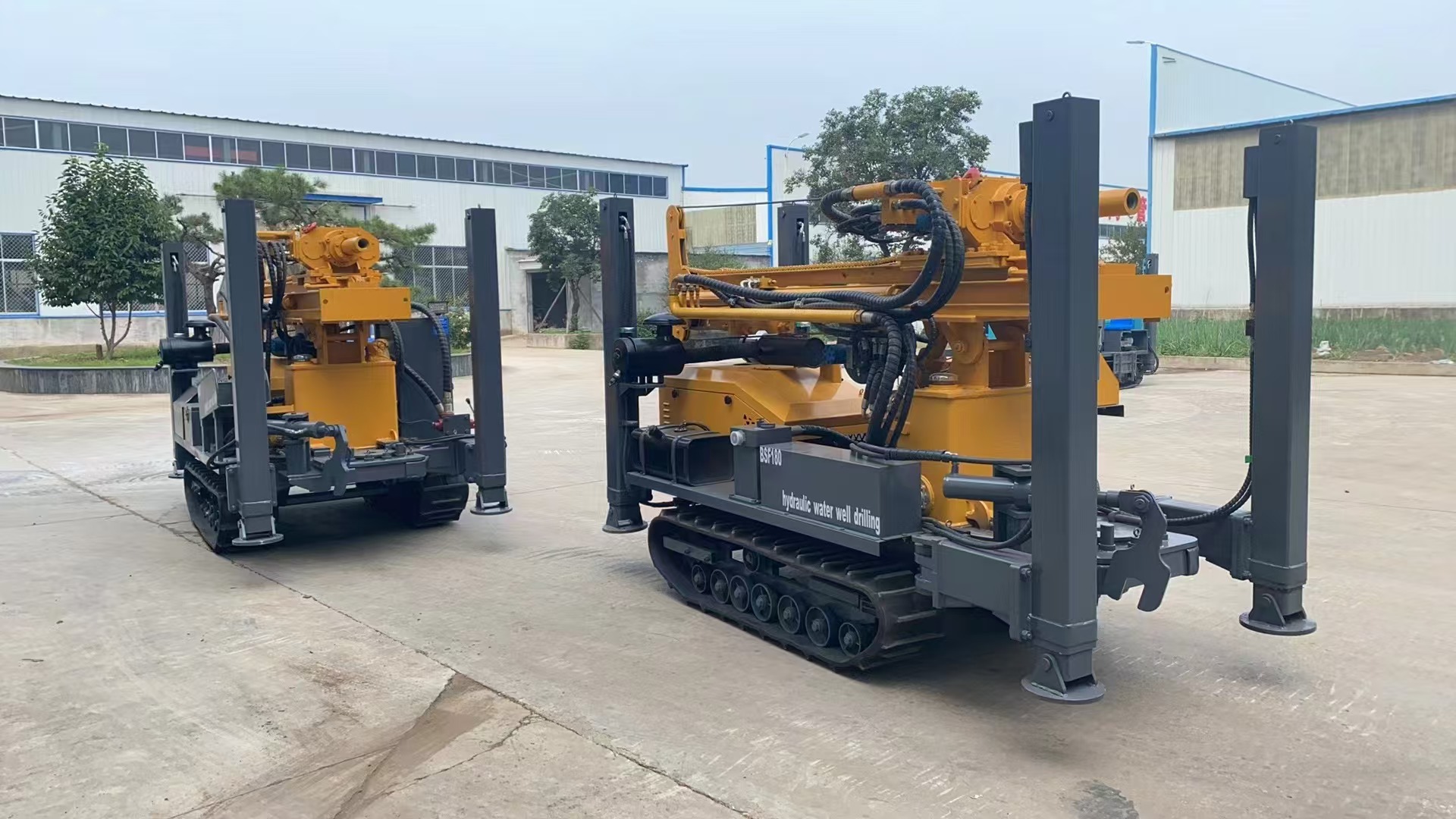

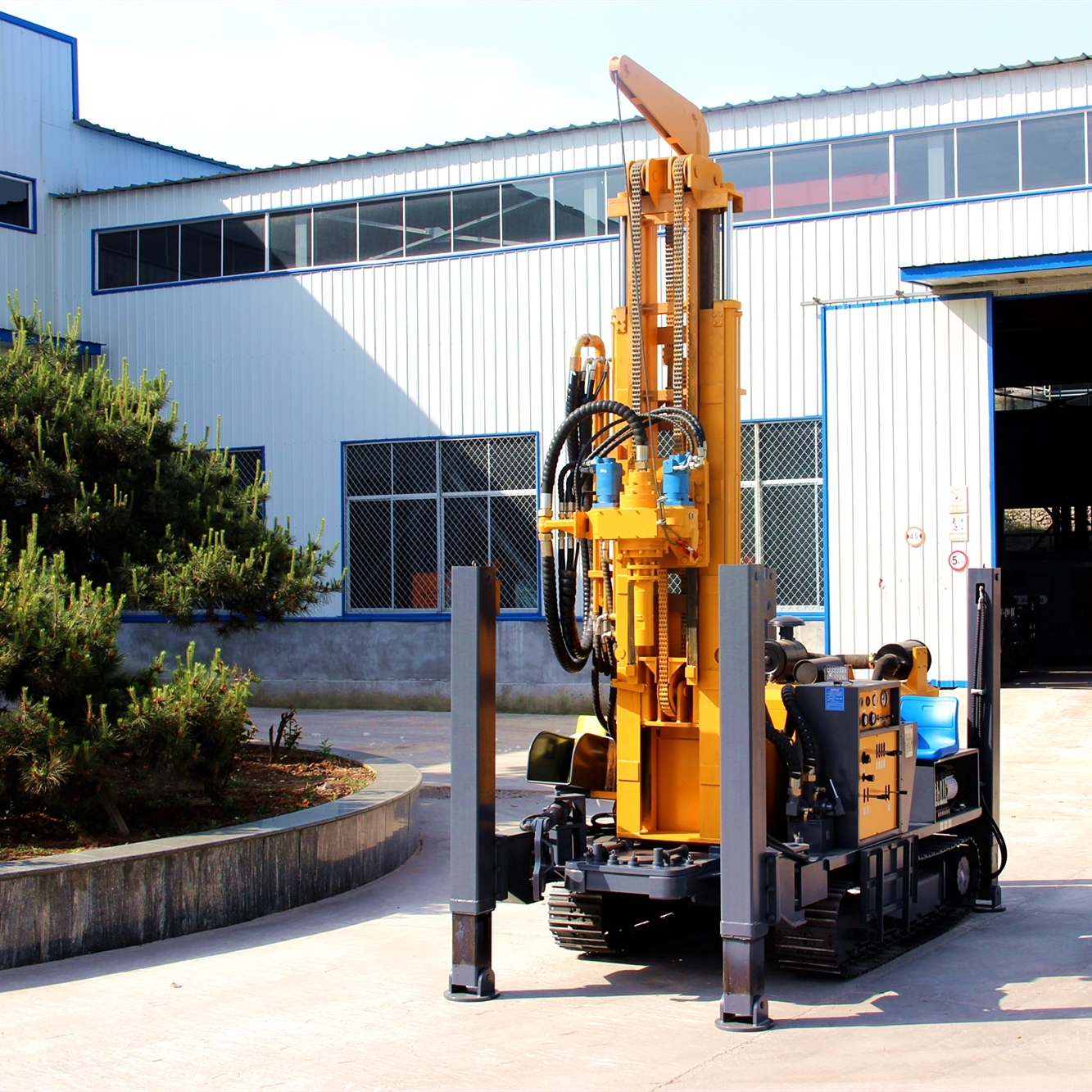

Advantages of BSF300 Water Well Drill Rig
1.The rig is mechanically driven, and the other is hydraulically driven to make efficient use of power. Minimize overall power loss and low drilling costs
2.The rig has a 2-speed reverse speed for easy handling of accidents
3. The rig adopts a long walking distance double speed mechanism and a mechanical power head to improve the drilling efficiency and reduce the occurrence of blockage and burning drill accidents.
4.The rig adopts double oil pump for oil supply,less power loss and short auxiliary time
5.The rig has advanced structure and reasonable layout for easy maintenance, maintenance and repair.
6.With crawler chassis, the leg cylinder can be loaded automatically with a stroke of 1.5m, which is convenient for relocation and transportation.
7.The rig reserves some functional interfaces in the mechanical hydraulic system, which can be expanded according to the process requirements of different users.
Parameter
Model (Crawler Type) | BSF300 (Steel Chain) |
Weight(kg) | 8800 |
Dimenstion (mm) | 5350*1850*2600 |
Drilling Hole Diameter(mm) | 180 |
Drilling Depth(m) | 300 |
Feed Stroke(mm) | 6000 |
Travelling Speed(km/h) | 2 |
Climb Capacity (max) | 30° |
Ground Clearance (mm) | 230 |
Working Pressure(Mpa) | 1.7-3.3 |
Air Consumption(m3/min) | 23 |
Power(kw) | 85 |
Rotation Speed(rpm) | 55-115 |
Rotation Torque(Nm) |
|
Applications
The drilling rig is a new type of high-efficiency, energy-saving and multi-functional hydraulic drilling rig. It is mainly used for drilling water wells, monitoring wells, geothermal air conditioning holes, hydroelectric cofferdam grouting holes, foundation reinforcement grouting holes. Drilling operations such as open pit mining, anchoring, and national defense engineering; the drilling rig uses a downhole impact casing to follow the wall drilling process to effectively solve the technical problem that the loose layer is not easy to form holes. The rig is equipped with high-power hydraulic motor rotation, cylinder propulsion and lifting, high-pressure submerged hole impactor, high drilling efficiency and low consumption.
