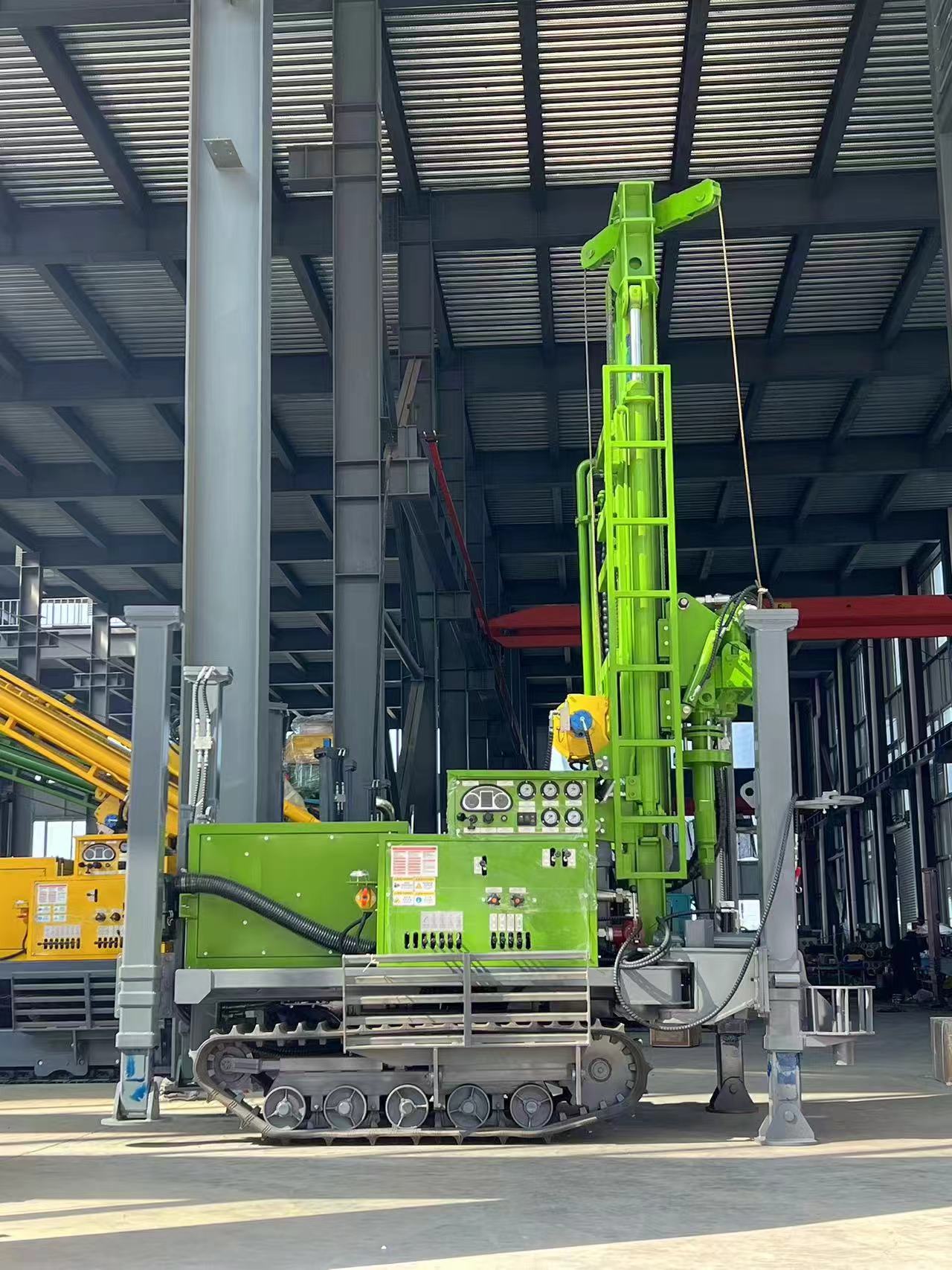

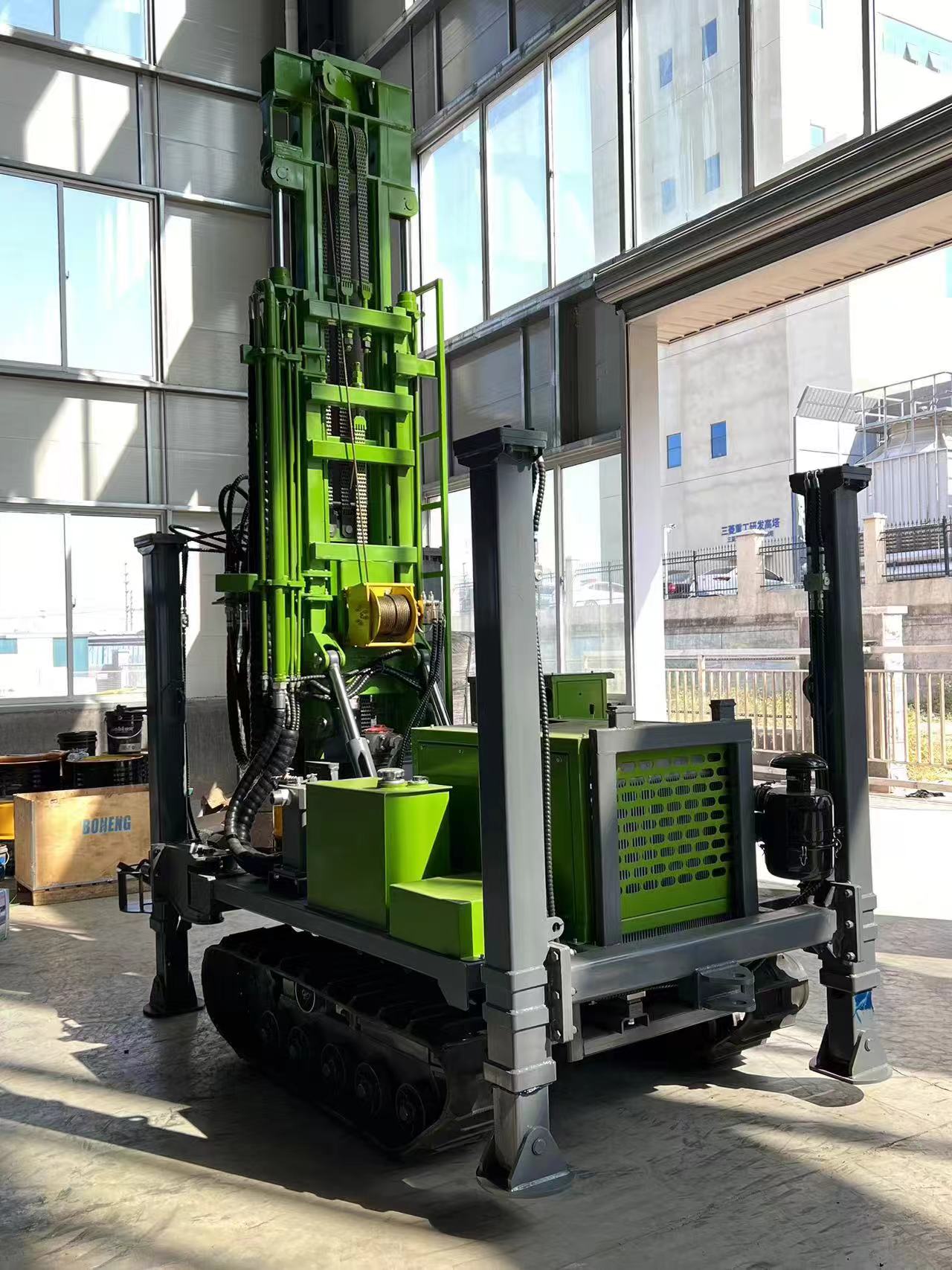

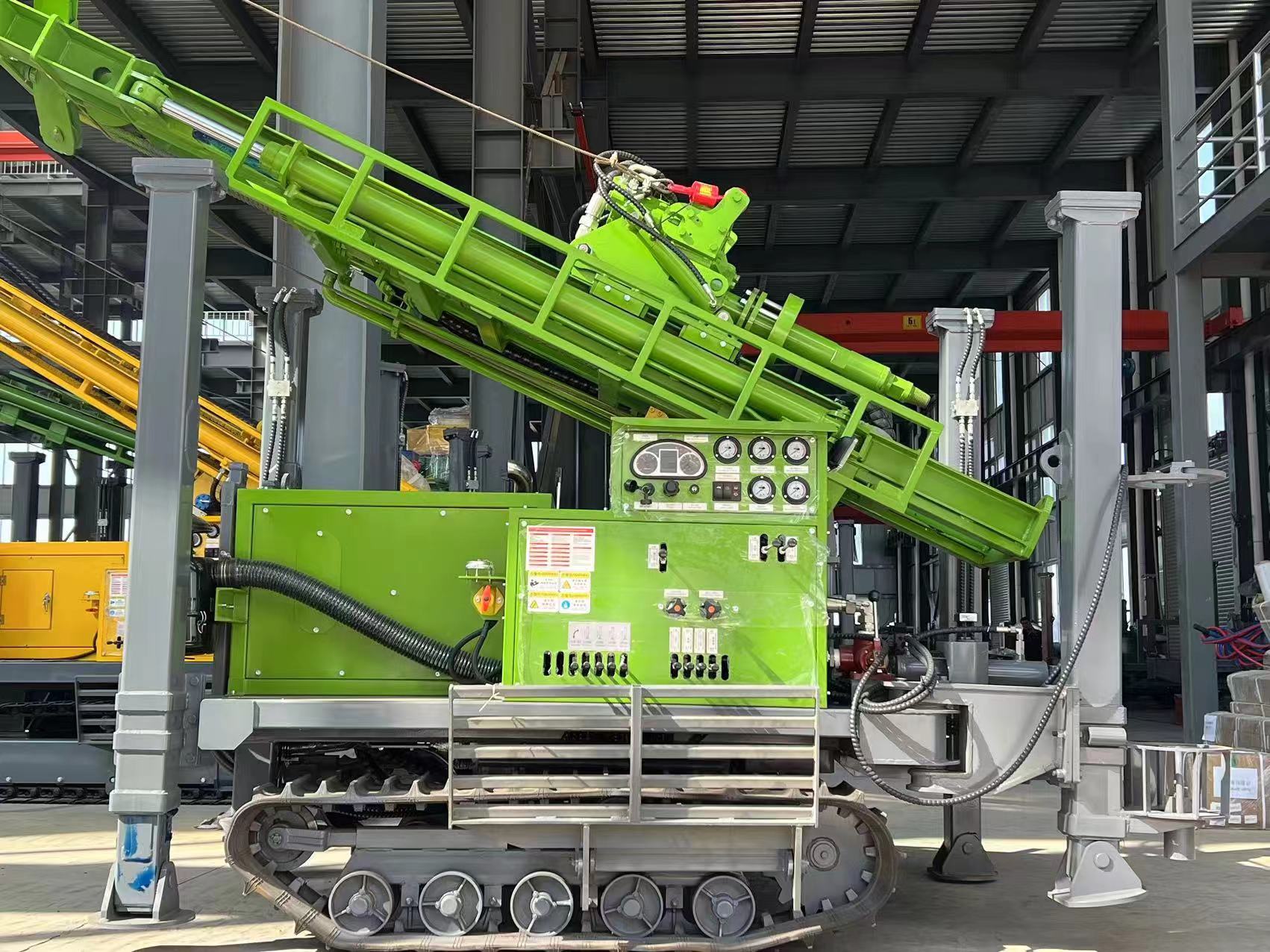

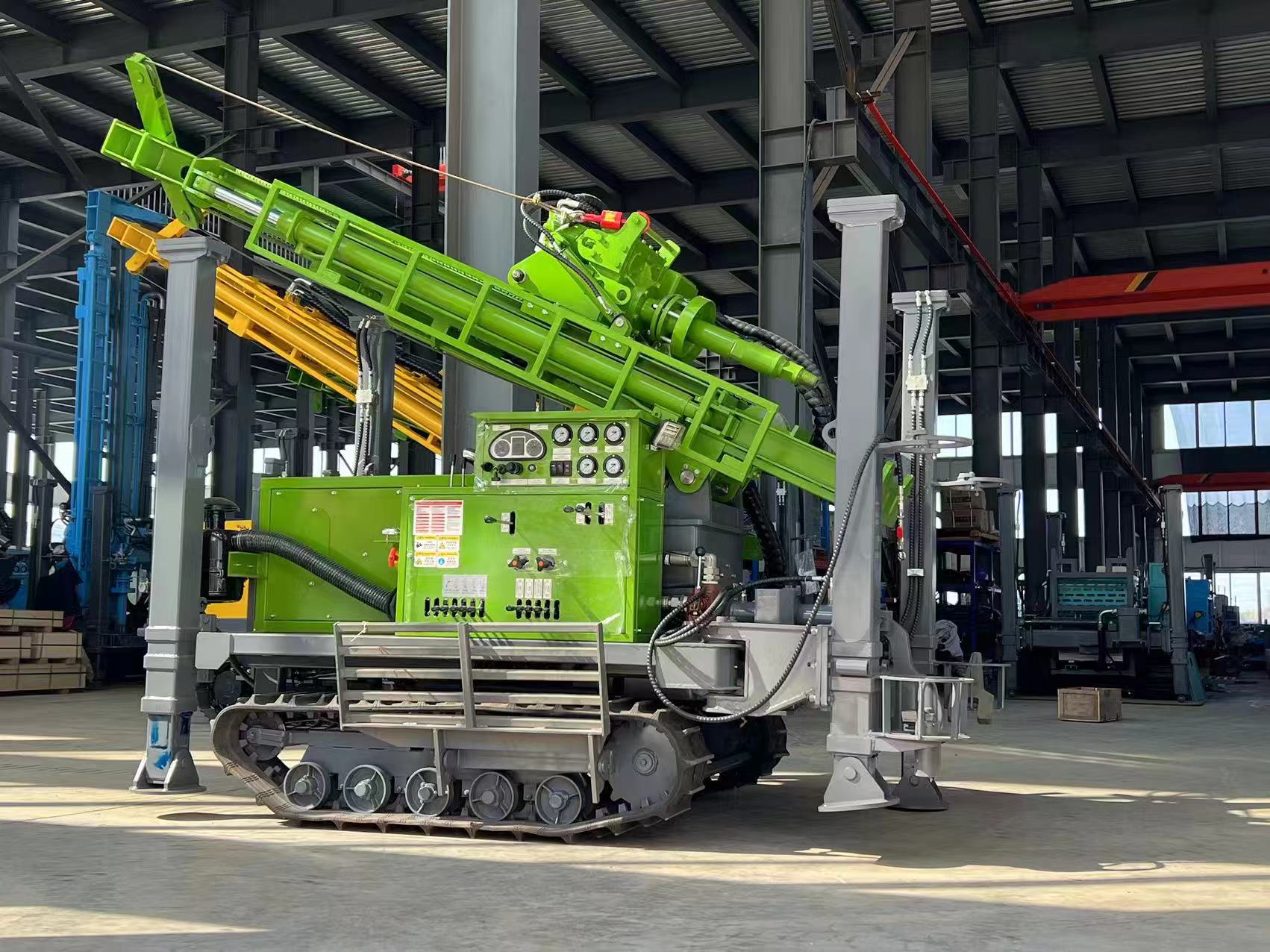

Features of the BSF200RL water well drilling rig
1.Small size, light weight and easy installation
2.Three major components, main engine, pump station, console
3.In the original transportation and prospecting roadway, it can be put into production, which will protect the overall structure of the mine. Can also be used for surface 0-90 degree drilling.
4.The rig is flexible in layout, mechanically twisting and unloading the drill pipe, reducing labor intensity and improving work efficiency.
5.With linkage function, centralized control through the console. Simple and safe, stepless speed regulation
6.The hollow shaft design, the length of the drill pipe is not limited by the drilling process. Can drill at any angle.
7.Good disintegration, easy to move and transport
Advantages of BSF200RL water well drilling rig:
1.Large diameter of drilling
2.Drilling deeply
3. Fast footage
4.Flexible movement
5.Wide application area
Parameter
| Model （Trailer Type） | BSF200RL |
| Drilling Hole Diameter（mm） | 100-254 |
| Drilling Depth（m） | 200 |
| Drilling Direction（°） | 45°-90° |
| Feed Stroke（mm) | 1500 |
| Power（kw) | Yunnei 65KW or Yuchai engine 58KW |
| Rotation Speed（rpm) | 52 |
| Working Pressure(Mpa) | 1.45-2.5 |
| Air Consumption（m3/min) | 15-27 |
| Weight（kg) |
|
FAQ:
1.What can you buy from us? DTH drilling rig,core drilling rig,highway pile driver,solar pile driver ,anchor pile driver,rotary
drill rig ,Top Hammer drill rig，underground jumbo drill rig ,hydraulic scaling rig,DTH hammer,drill rod,screw air compressor,water well drilling rig,truck mounted water well drilling rig,reverse circulation drilling rig，environmental drilling rig，screw air compressor, piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.
2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc. 3. How is the shipment? How long dose it take? A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT.You can also appoint shipping method you like before we ship.
4.How is your quality control?
A: We have our own experienced QC.There will be strict inspection and testing for every order before shipping
out.
